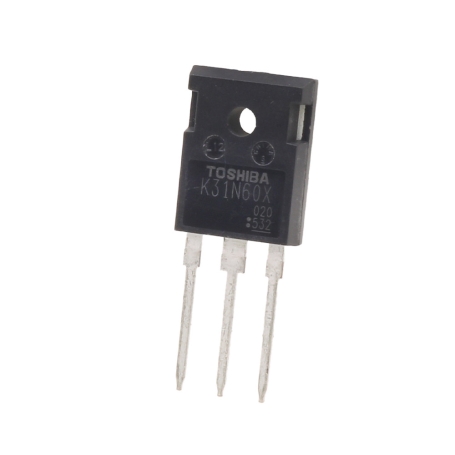

ماسفت TK31N60X نوع N-Channel تایوانی مارک TOSHIBA پکیج TO-247
ماسفت 600 ولت 30.8 آمپر TK31N60X تایوانی مارک TOSHIBA نوع N-Channel پکیج TO-247
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 600 V
Id – Continuous Drain Current: 30.8 A
Rds On – Drain-Source Resistance: 0.073 Ohms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage: 3.5 V
Qg – Gate Charge: 65 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 230 W
| Manufacturer | |
|---|---|
| Package/Case | |
| Type | |
| Continuous Drain Current (Id) | |
| Drain Source Voltage (Vdss) | |
| Power Dissipation (Pd) | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
