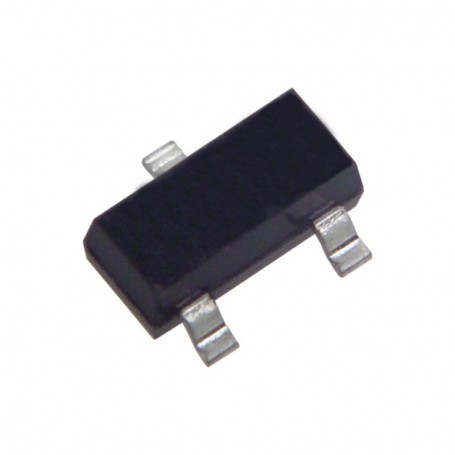

ماسفت Si2301 نوع P-Channel پکیج SOT-23
ماسفت 20 ولت 2.3 آمپر SI2301 پکیج SOT-23
Product Category: MOSFET
RoHS: No
Technology: Si
Mounting Style: SMD/SMT
Package/Case: SOT-23-3
Number of Channels: 1 Channel
Transistor Polarity: P-Channel
Vds – Drain-Source Breakdown Voltage: – 20 V
Id – Continuous Drain Current: 2.3 A
Rds On – Drain-Source Resistance: 130 mOhms
Vgs – Gate-Source Voltage: 8 V
Maximum Operating Temperature: + 150 C
Channel Mode: Enhancement
Brand: Vishay / Siliconix
Configuration: Single
Fall Time: 36 ns
Height: 1.02 mm
Length: 3.04 mm
Minimum Operating Temperature: – 55 C
Pd – Power Dissipation: 1.25 W
Product: MOSFET Small Signal
Rise Time: 36 ns
Series: SI2
Factory Pack Quantity: 3000
Tradename: TrenchFET
Transistor Type: 1 P-Channel
Typical Turn-Off Delay Time: 42 ns
Typical Turn-On Delay Time: 13 ns
Width: 1.4 mm
| Manufacturer | |
|---|---|
| Package/Case | |
| Type | |
| Continuous Drain Current (Id) | |
| Drain Source Voltage (Vdss) | |
| Power Dissipation (Pd) | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
