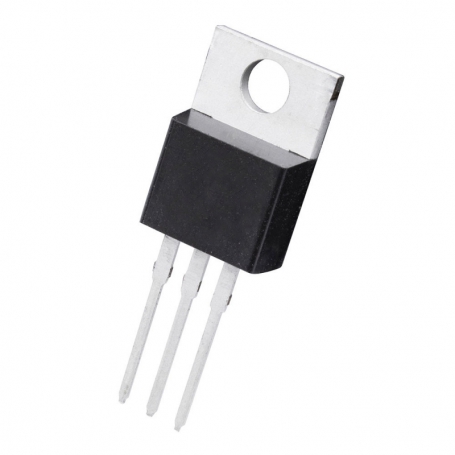

ماسفت IRFZ48N نوع N-Channel پکیج TO-220

Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 55 V
Id – Continuous Drain Current: 64 A
Rds On – Drain-Source Resistance: 14 mOhms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Qg – Gate Charge: 54 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Pd – Power Dissipation: 130 W
Channel Mode: Enhancement
Brand: Infineon / IR
Configuration: Single
Fall Time: 50 ns
Height: 15.65 mm
Length: 10 mm
Product Type: MOSFET
Rise Time: 78 ns
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 34 ns
Typical Turn-On Delay Time: 12 ns
