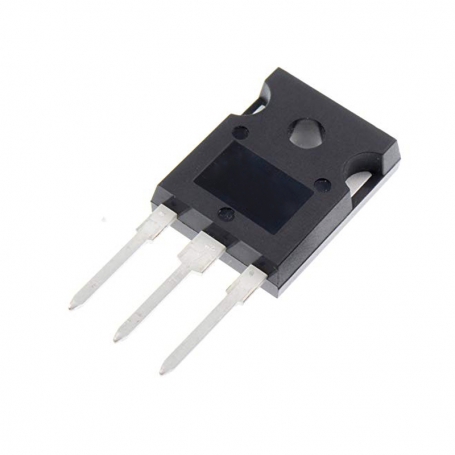

ماسفت IRFP450 نوع N-Channel پکیج TO-247
ماسفت 500 ولت 14 آمپر IRFP450 نوع N-Channel پکیج TO-247
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 500 V
Id – Continuous Drain Current: 14 A
Rds On – Drain-Source Resistance: 400 mOhms
Vgs – Gate-Source Voltage: 20 V
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: – 55 C
Fall Time: 44 ns
Height: 20.7 mm
Length: 15.87 mm
Pd – Power Dissipation: 190 W
Rise Time: 47 ns
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 92 ns
Typical Turn-On Delay Time: 17 ns
| Manufacturer | |
|---|---|
| Package/Case | |
| Type | |
| Continuous Drain Current (Id) | |
| Drain Source Voltage (Vdss) | |
| Power Dissipation (Pd) | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
