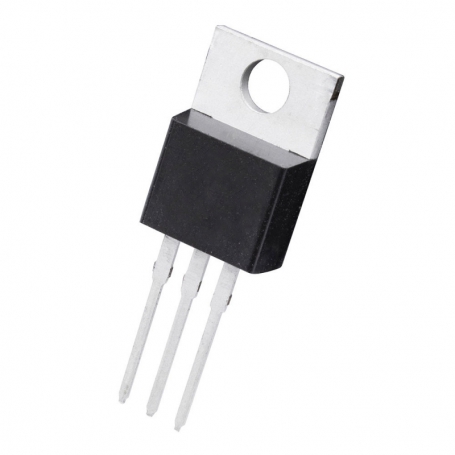

ماسفت IRF540 نوع N-channel پکیج TO-220

Mounting Style: Through Hole
Package / Case:  TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 100 V
Id – Continuous Drain Current: 28 A
Rds On – Drain-Source Resistance: 77 mOhms
Vgs – Gate-Source Voltage: 20 V
Maximum Operating Temperature: + 175 C
Fall Time: 43 ns
Height: 9.01 mm
Length: 10.51 mm
Minimum Operating Temperature: – 55 C
Pd – Power Dissipation: 150 W
Rise Time: 44 ns
Factory Pack Quantity: 1000
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 53 ns
Typical Turn-On Delay Time: 11 ns
