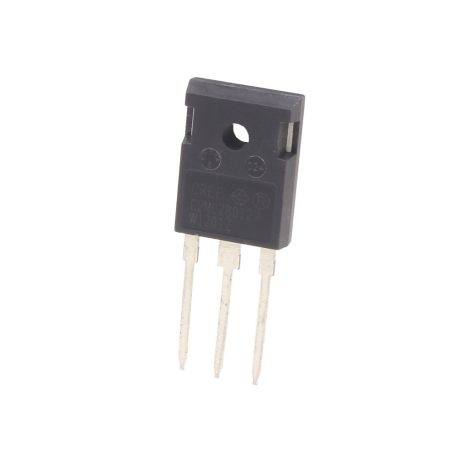

ماسفت C2M0280120 نوع N-Channel مارک CREE پکیج TO-247
ماسفت 1200 ولت 10 آمپر C2M0280120 نوع N-Channel مارک CREE پکیج TO-247
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 1200 V
Id – Continuous Drain Current: 10 A
Rds On – Drain-Source Resistance: 280 mOhms
Vgs – Gate-Source Voltage: – 10 V, + 25 V
Vgs th – Gate-Source Threshold Voltage: 4 V
Qg – Gate Charge: 20.4nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 62.5 W
