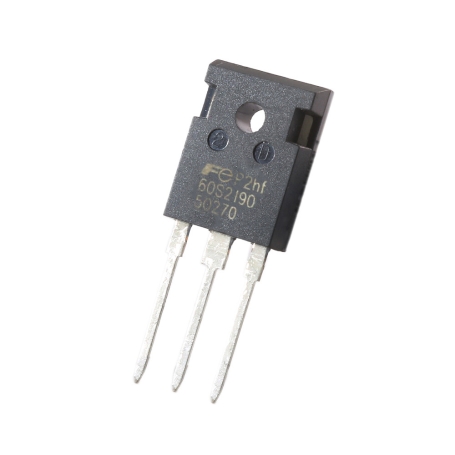

ماسفت قدرت FMV60N190S2HF نوع N-Channel ژاپنی مارک FUJI پکیج TO-247
ماسفت قدرت FMV60N190S2HF پکیج TO-247 نوع N-Channel ژاپنی FUJI
Type Designator: FMV60N190S2HF
Marking Code: 60S2190
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 38 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 46 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 30 pF
Maximum Drain-Source On-State Resistance (Rds): 0.19 Ohm
| Manufacturer | |
|---|---|
| Package/Case | |
| Type | |
| Continuous Drain Current (Id) | |
| Drain Source Voltage (Vdss) | |
| Power Dissipation (Pd) | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
