ماسفت قدرت FMH40N60S1FD نوع N-Channel

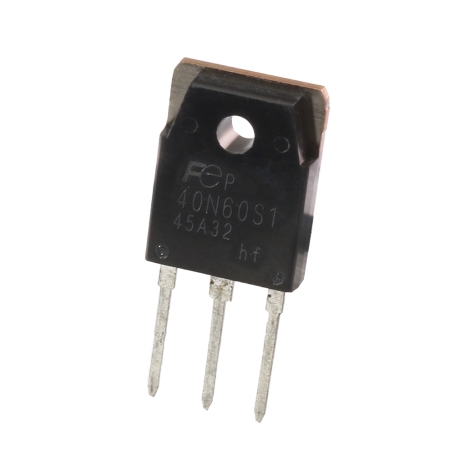

ماسفت FMH40N60S1FD پکیج TO-3P نوع N-Channel ژاپنی FUJI
Type Designator: FMH40N60S1FD
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 315 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 104 nC
Rise Time (tr): 29 nS
Drain-Source Capacitance (Cd): 83 pF
Maximum Drain-Source On-State Resistance (Rds): 0.093 Ohm
| Type | |
|---|---|
| Continuous Drain Current (Id) | |
| Drain Source Voltage (Vdss) | |
| Power Dissipation (Pd) | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
