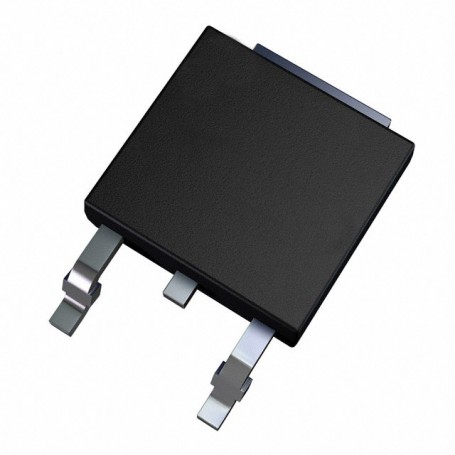

رگولاتور LM317 پکیج TO-252
رگولاتور ولتاژ 1.2 الی 37 ولت LM317 پکیج TO-252
Product Category: Linear Voltage Regulators
Mounting Style: SMD/SMT
Package / Case: TO-252 D2PACK
Output Voltage: 1.2 V to 37 V
Output Current: 500 mA
Output Type: Adjustable
Input Voltage MAX: 40 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: 0 C
Load Regulation: 0.5 % / V
Line Regulation: 0.04 % / V
Series: LM317
Input Voltage MIN:4.2 V
Height: 2.4 mm (Max)
Length: 6.6 mm (Max)
Number of Outputs:1
Packaging: Reel
Polarity: Positive
PSRR / Ripple Rejection – Type: 80 dB
| Manufacturer | |
|---|---|
| Mounting Style | |
| Package/Case | |
| Output Voltage | |
| Output Current | |
| Input Voltage Max | |
| Input Voltage Min |
