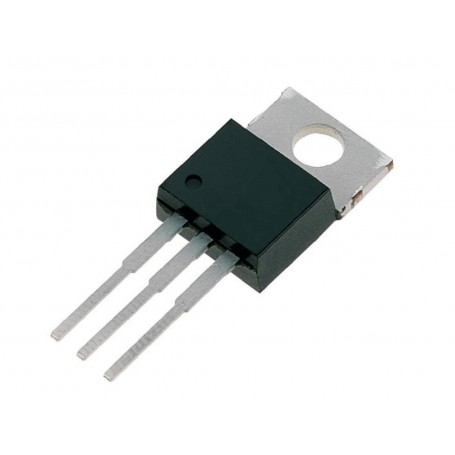

رگولاتور 5+ ولت LM2940 پکیج TO-220

Product Category: LDO Voltage Regulators
Mounting Style: Through Hole
Package / Case: TO-220-3
Output Voltage: 5 V
Output Current: 1 A (Typ)
Quiescent Current: 15 mA
Number of Outputs: 1 Output
Input Voltage MAX: 26 V
Output Type: Fixed
Maximum Operating Temperature: + 125 C
Load Regulation: 50 mV
Series: LM2940-N
Dropout Voltage: 500 mV
Dropout Voltage – Max:0.8 V at 1A, 0.15 V at 100 mA
Ib – Input Bias Current: 10 mA
Input Voltage MIN: 6.25 V
Line Regulation: 50 mV
Minimum Operating Temperature: – 40 C
Operating Supply Current: 10 mA
Operating Temperature Range: – 40 C to + 125 C
Polarity:     Positive
