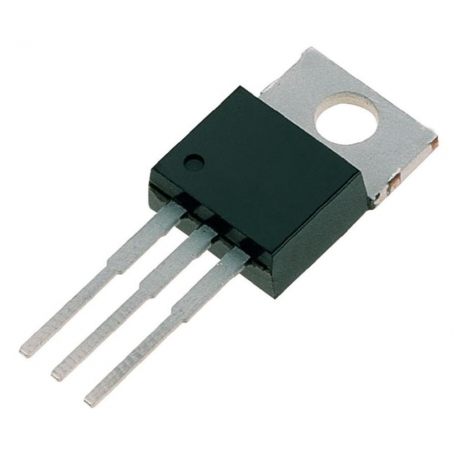

رگولاتور 15+ ولت 7815 پکیج TO-220

Product Category: Linear Voltage Regulators
Package / Case: TO-220
Number of Outputs: 1 Output
Polarity: Positive
Output Voltage: 15 V
Output Current: 1.5 A
Output Type: Fixed
Input Voltage, Min: 17 V
Input Voltage, Max: 35 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 125 C
Load Regulation: 100 mV
Line Regulation: 150 mV
Quiescent Current: 4.4 mA
Height: 9.15 mm
Length: 10.4 mm
Product Type: Linear Voltage Regulators
PSRR / Ripple Rejection – Typ: 58 dB
Subcategory: PMIC – Power Management ICs
Width: 4.6 mm
