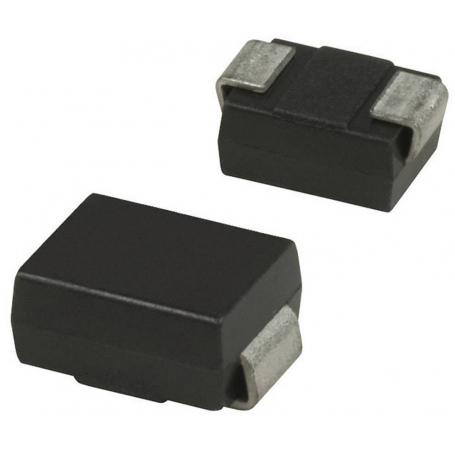

دیود فوق سریع US1M پکیج SMB
دیود فوق سریع اس ام دی 1000 ولت 1 آمپر US1M پکیج SMB
Diode Type: Standard
Voltage – DC Reverse (Vr) (Max): 1000 V
Current – Average Rectified (Io): 1A
Voltage – Forward (Vf) (Max) @ If: 1.7 V @ 1 A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr): 75 ns
Current – Reverse Leakage @ Vr: 5 µA @ 600 V
Capacitance @ Vr, F: 8pF @ 0V, 1MHz
Mounting Type: Surface Mount
Supplier Device Package: DO-214AA (SMA)
Operating Temperature – Junction: 150°C (Max)
