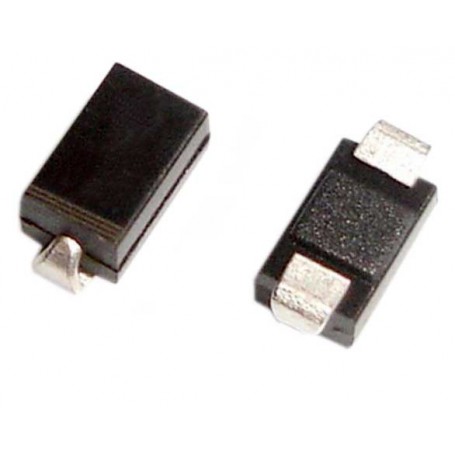

دیود فوق سریع ES2J پکیج SMA
دیود فوق سریع اس ام دی 600 ولت 2 آمپر ES2J پکیج SMA
Specification
Diode Type: Standard
Voltage – DC Reverse (Vr) (Max): 600 V
Current – Average Rectified (Io): 2A
Voltage – Forward (Vf) (Max) @ If: 1.7 V @ 1 A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr): 35 ns
Current – Reverse Leakage @ Vr: 5 µA @ 600 V
Capacitance @ Vr, F: 8pF @ 0V, 1MHz
Mounting Type: Surface Mount
Supplier Device Package: DO-214AC (SMA)
Operating Temperature – Junction: 150°C (Max)
| Manufacturer | |
|---|---|
| Package/Case | |
| Forward Voltage (Vf@If) | |
| Rectified Current |
