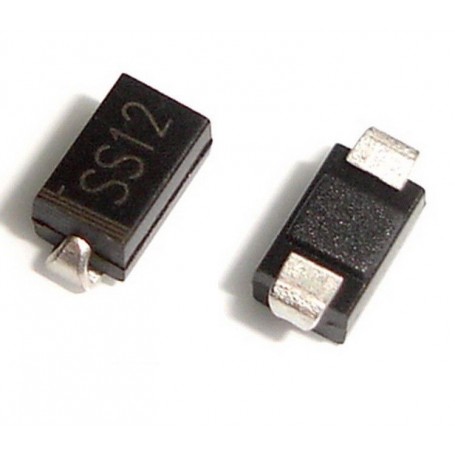

دیود شاتکی SS12 1N5817 پکیج SMA

Product Category:     Schottky Diodes & Rectifiers
Manufacturer:     Fairchild Semiconductor
RoHS:     RoHS Compliant By Exemption Details
Product:     Schottky Rectifiers
Mounting Style:     SMD/SMT
Package / Case:     SMA (DO-214AC)
If – Forward Current:     1 A
Vrrm – Repetitive Reverse Voltage:     20 V
Vf – Forward Voltage:     0.5 V
Ifsm – Forward Surge Current:     40 A
Configuration:     Single
Technology:     Si
Ir – Reverse Current:     200 uA
Minimum Operating Temperature:     – 65 C
Maximum Operating Temperature:     + 125 C
Series:     SS12
Packaging:     Reel
Brand:     Fairchild Semiconductor
Height:     2.2 mm (Max)
Length:     4.75 mm (Max)
Operating Temperature Range:     – 65 C to + 125 C
Factory Pack Quantity:     7500
Termination Style:     SMD/SMT
Type:     Schottky Diode
Width:     2.95 mm (Max)
