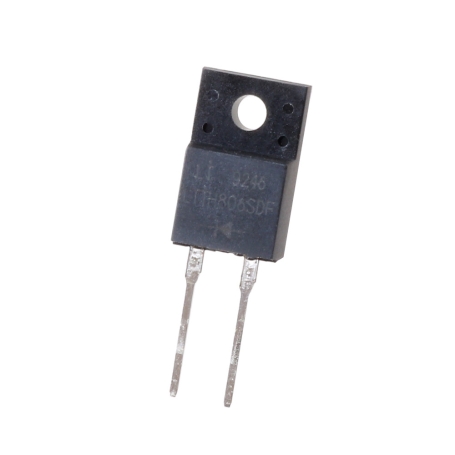

دیود سریع LTTH806SDF 600V-8A مارک LITE-ON پکیج TO-220AP
دیود سریع 600 ولت 8 آمپر LTTH806SDF مارک LITE-ON پکیج TO-220AP
Product Category: HYPER-FAST GLASS PASSIVATED RECTIFIER
Mounting Style: Through Hole
Package/Case: TO-220AP
Configuration: Single
Technology: Si
If – Forward Current: 8 A
Vrrm – Repetitive Reverse Voltage: 600 V
Vf – Forward Voltage: 3.4 V
Ifsm – Forward Surge Current: 60 A
Ir – Reverse Current: 15 uA
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
